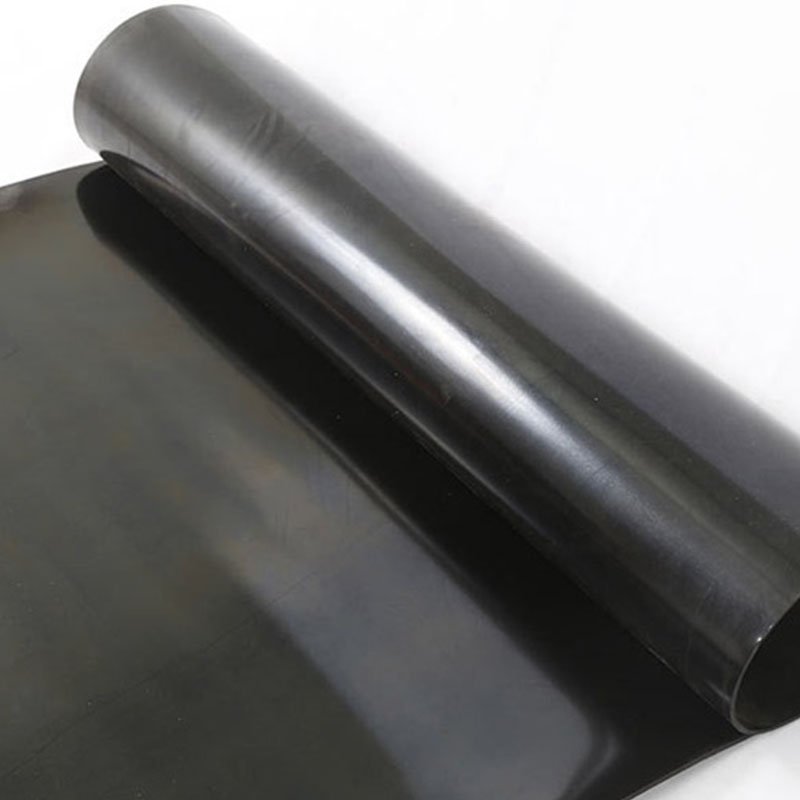

NBR Rubber Sheet
Product Specification
●NBR rubber sheet made by mixing rubber calendering, vulcanizing with Plate
vulcanizing machine or drum vulcanizing
machine
●Mainly used for all kinds of oil resistant oil seals, seal strips, rings, and grease contact table, ground, electronic products laying
●Color: black, gray, green, blue and so on
Products Details:
Pattern: smooth
Description: Industrial rubber sheet
Material: NBR(Buna-N) rubber
Temperature: -40℃~+100℃
Thickness: 1mm-50mm (1mm to 20mm in a roll, 20mm to 50mm in a sheet)
Width: 1M -2M
Length: 10M-20M
NBR provides good resistance to most types of oil such as mineral, animal and vegetable oil, normal fuels like gasoline, diesel and light heating oils, mixture of alcohol and gasoline.
Application: it can be used in gaskets and other products in which oil resistance is required
*Custom sizes available upon request.
Grade | Hardness （Shore A） | Density （g/cm3） | Tensile Strength （Mpa） | Elongation At Break （%） | Color |
Economy Grade | 65 | 1.50 | 3 | 200 | Black |
Soft NBR | 50 | 1.40 | 4 | 250 | Black |
Commercial Grade | 65 | 1.50 | 3 | 250 | Black |
High Grade | 65 | 1.35 | 5 | 300 | Black |
High Grade | 60 | 1.35 | 10 | 350 | Black |
