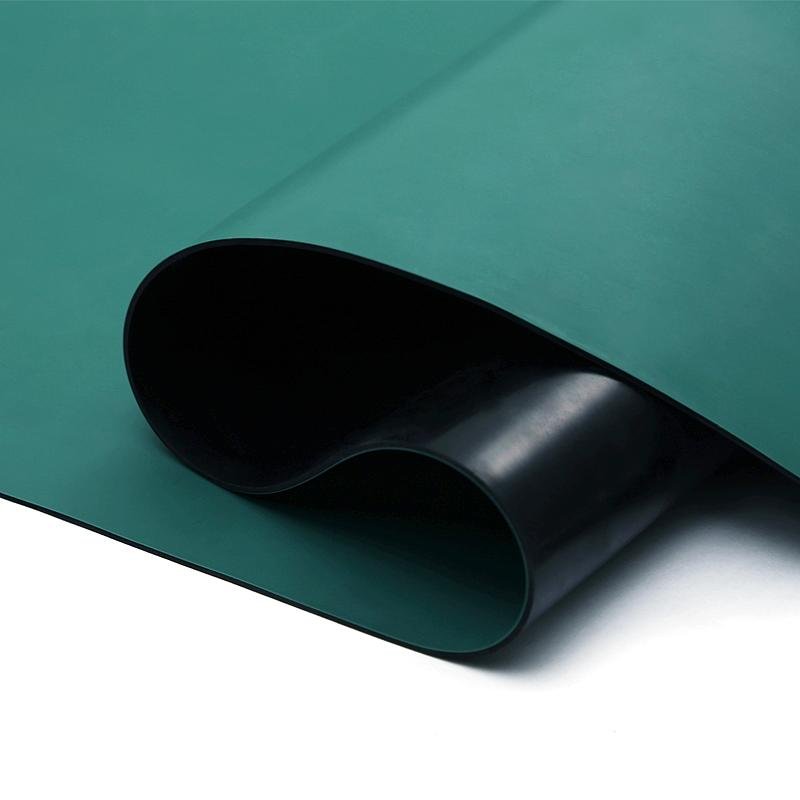

Anti-Static Rubber Sheet
Product Specification
●Two layers composite
●The top is a green, grey or blue static dissipative layer and the bottom is conductive layer.
●The top layer:electrical resistance 107-109Ω
●The bottom layer:electrical resistance 103-105Ω
●Easy install, clean and dry
Products Details:
Pattern: both side are smooth
Description:Anti-Static Rubber Sheet
Hardness: 70+/-5 shore A
Temperature: -20℃~ +70℃
Electrical Volume Resistance:The top layer: 107-109Ω,The bottom layer: 103-105Ω
Thickness: 2mm-6mm
Width: 1M -1.6M
Length: 10M-20M
*Custom sizes/colors available upon request.
Hardness (Shore A) | Density (g/cm3) | Surface | Tensile Strength (Mpa) | Electrical Volume Resistance (Ω) | Color |
70 | 1.50 | Top surface | 10 | 107-109 | Green,Grey,Blue |
Bottom surface | 3 | 103-105 | Black |
