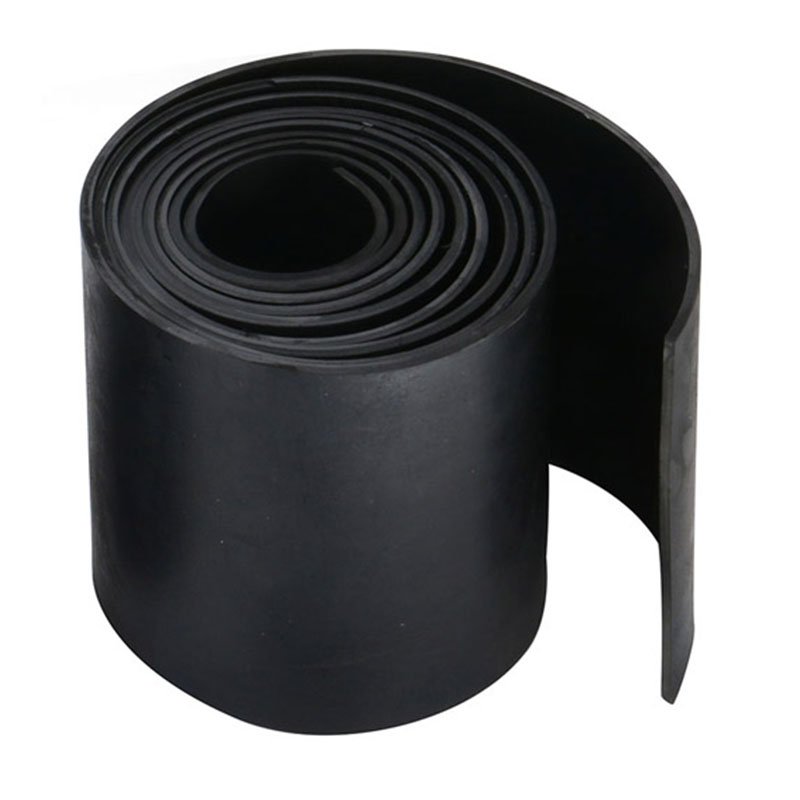

Insulation Rubber Sheet
Product Specification
●Insulation rubber sheet with large volume resistivity and electrical breakdown resistance
●Working in the dielectric environment, the maximum insulation voltage of 100,000 VOLTS
●It can be used for laying floor and worktable in distribution station, substation, etc
Products Details:
Pattern: both side are smooth
Description: Insulation Rubber Sheet
Hardness: 70+/-5 shore A
Temperature: -20℃~ +70℃
Thickness: 1mm-50mm
Width: 1M -1.6M
Length: 1M-20M
*Custom sizes/colors available upon request.
Hardness （Shore A） | Density （g/cm3） | Tensile Strength （Mpa） | Elongation At Break （%） | Color |
65+/-5 | 1.50 | 3 | 150 | Black |
65+/-5 | 1.40 | 5 | 300 | Black |
40+/-5 | 1.05 | 18 | 600 | Black |
